The Small Window Profile That Keeps the Glass in Place

A glazing bead is easy to overlook. It is usually a narrow strip around the edge of a pane, yet it forms part of the system that keeps the glass seated in a window sash or frame.

That does not make every bead interchangeable. The visible face may be flat, rounded, chamfered, or decorative, while the concealed side can contain precisely shaped legs, hooks, clips, or compression surfaces. Those hidden details determine whether the bead engages with the frame and works with the glass and gaskets.

Replacing a glazing bead is therefore not simply a matter of finding a strip with the right color and length. Reliable identification depends on the complete cross-sectional geometry, fixing method, frame system, glass thickness, gasket arrangement, installed location, material, and finish.

What a glazing bead is—and what it is not

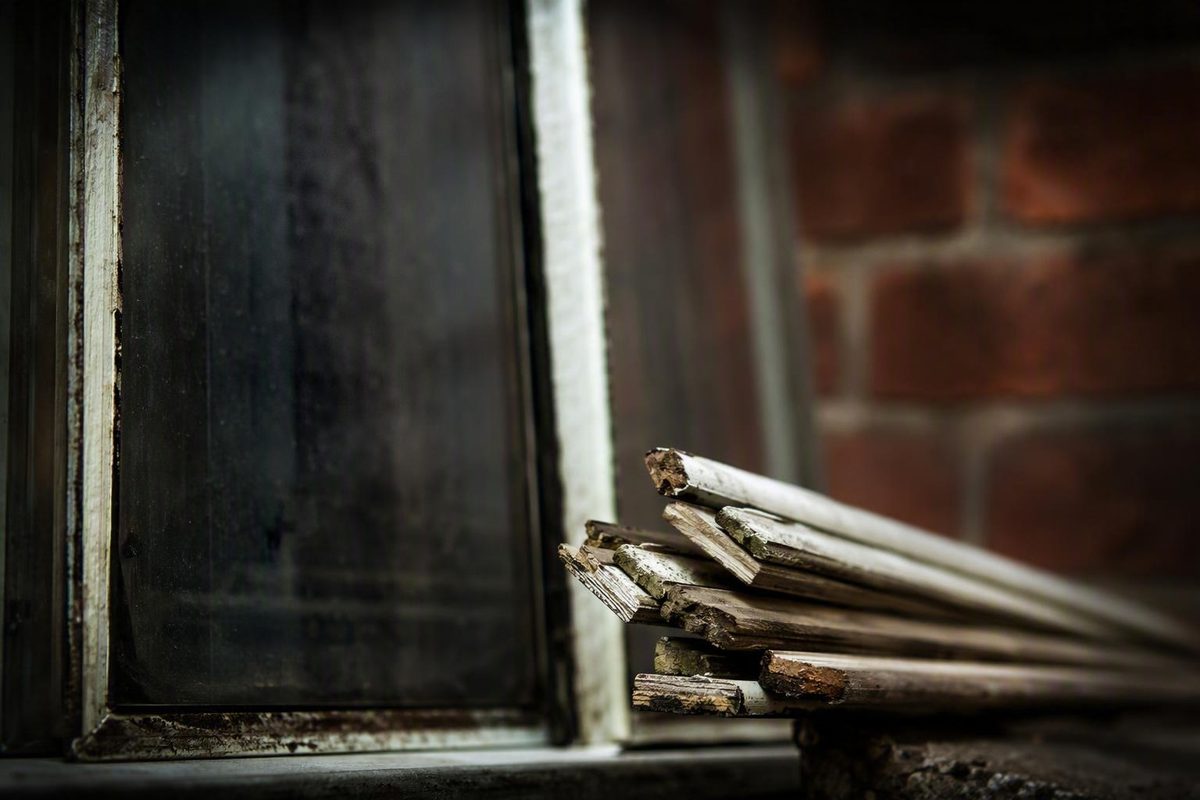

A glazing bead is a wood, metal, vinyl, uPVC, or composite strip that mechanically retains a glass pane or insulated glass unit within a sash or frame. It normally runs around the perimeter of the glass and, in many systems, can be removed so that the glazing can be serviced.

The bead is only one part of the glazing assembly. Depending on the window design, that assembly may also include:

• The glass pane or insulated glass unit
• A sash or fixed frame
• A rabbet or rebate in which the glass sits
• Packers or setting blocks
• Retained or captive gaskets
• A separate wedge gasket
• Glazing tape
• Wet-applied sealant
• Mechanical fasteners or clips
• Drainage or ventilation provisions

The terms for these components are not interchangeable. A glazing bead is the mechanical retaining profile; the rabbet or rebate is the recessed area that receives the glass. Gaskets, sealants, packers, and other frame components perform separate functions within the assembly. Window Film Depot’s glazing overview distinguishes beads from putty, gaskets, rabbets, sashes, and other glazing components.

Several nearby parts are commonly mistaken for the bead:

• Glazing putty is a moldable compound traditionally used to bed, seal, or retain glass. It is not a removable profiled strip.
• A gasket is a resilient sealing or cushioning component. It may act against a bead without being part of the bead itself.
• Sealant is applied as a wet material and cures in place.
• The rabbet or rebate is the ledge or channel in the frame that receives the glazing.
• The sash is the framed unit holding the glass and may be fixed or operable.
• A muntin divides, or appears to divide, the glazed area. It is not the perimeter retaining strip.

A bead helps retain and stabilize the glass, but it should not be treated as the sole source of weather sealing, structural support, security, thermal performance, or drainage. Those characteristics depend on the complete window system, including the glass, frame, seals, fixings, packers, drainage paths, fabrication, and installation.

Removability provides an important servicing benefit. In a suitable beaded window, a broken pane or failed insulated glass unit may be replaceable without replacing the complete sash. That option depends on the frame, retaining channel, gaskets, packers, seals, and drainage arrangement remaining serviceable. Wakefield Equipment describes glazing beads as perimeter components used to retain glass and notes the potential to service the glazing without replacing the entire sash.

Materials, profiles, and fixing systems

Glazing beads are made in several material families. The appropriate material is normally determined by the original window system rather than by a universal ranking.

• Vinyl or uPVC beads are used in compatible extruded frame systems. Their concealed legs are shaped to engage with a corresponding groove or channel.
• Aluminium beads may clip, snap, or screw into aluminium frames and can work with separate elastomeric gaskets.
• Timber beads may be pinned, screwed, clipped, taped, or sealed according to the joinery design.
• Composite profiles may be used where a system requires a particular combination of geometry, finish, stiffness, or exposure resistance.

No material is universally best. The bead must suit the frame, glazing method, exposure, finish, glass configuration, and retaining profile built into the window.

Fixing arrangements also vary:

• Snap-in beads flex or rotate into a purpose-made retaining channel.
• Clip-in beads engage with separate clips or shaped frame features.
• Screw-secured beads use visible or concealed mechanical fasteners.
• Wedge-assisted systems use a gasket to establish compression and help secure the assembly.
• Security-taped systems incorporate adhesive glazing tape into the retaining arrangement.
• Concealed systems hide their principal engagement features after installation.
• Traditional timber systems may use pins, screws, tapes, bedding compounds, or sealants appropriate to the particular joinery design.

“Snap-in glazing” is also used as a name for a snap-in window glazing bead. It describes a fixing category, not glass that can be snapped into any frame and not one universal bead profile. SWISCO explicitly uses “window snap-in glazing” and “window glazing bead” for the same type of component.

The exposed face may be square, rounded, chamfered, ovolo, or otherwise shaped to suit the window’s appearance. That visible style matters where adjacent lengths meet at mitred or square-cut corners. For compatibility, however, the hidden cross-section is usually more important. Similar-looking profiles can differ in:

• Engagement-leg length
• Hook position
• Overall depth
• Return angle
• Clip shape
• Gasket seat
• Compression surface
• Relationship to the frame channel

Retail catalogs show why “glazing bead” is not a sufficiently specific product description. One category can contain many item numbers, rigid and flexible profiles, named window associations, and different supplied lengths. The SWISCO snap-in glazing catalog lists numerous distinct profiles and includes both 3-foot and 6-foot retail examples.

Some beads act against a retained gasket. Others work with a wedge gasket inserted from the opposite side. A timber system may combine a bead with glazing tape and a perimeter seal, while a metal system may use screws, clips, or a proprietary channel. Identifying the bead material alone does not establish either product compatibility or the correct installation method.

Internal versus external glazing beads

An internally beaded window places the removable glazing bead on the room side. An externally beaded window places it on the exterior face.

To investigate the arrangement, inspect both sides of the window without forcing any component. Look for:

• A separate narrow profile around the glass
• Fine seams where bead lengths meet
• A joint between the bead and the main frame
• Mitred or square-cut corners
• A distinct perimeter profile on one face but a continuous frame surface on the other

Paint, dirt, sealant, and close-fitting joints can obscure the boundary, particularly on timber windows. An uncertain line could be a gasket, bonded trim, frame cover, or part of a concealed system rather than a removable bead.

Location affects servicing. An internally beaded pane is generally accessed from indoors. An externally beaded pane generally requires access to the exterior face, although an internal gasket or tape may also control whether the exterior bead can be released.

Exposure differs as well. An exterior bead is directly exposed to sunlight, rain, and temperature changes, while an interior bead is more sheltered. Bead position alone does not establish durability; material, finish, seals, drainage, fabrication, maintenance, and installation all remain relevant.

Bead position also does not determine security by itself. Some older externally beaded designs allowed more direct access to the retaining components. Other systems use an interior wedge gasket or security tape that must be released before the exterior bead can be removed. In a wedge-gasket arrangement, the bead may be installed from outside while compression and locking are established from inside. Door and Window Experts describes the glass, packers, retained gasket, bead, and internal wedge gasket as interacting parts of the retaining system.

The age of a window and the side on which its bead appears are therefore not enough to establish vulnerability. The complete design, fixings, glazing method, condition, and any applicable system-level testing provide more useful evidence.

Internal and external beading are best understood as design alternatives with different practical implications:

Consideration	Internal bead	External bead
Routine access	Usually approached from indoors	Usually approached from the exterior face
Weather exposure	More sheltered	Directly exposed
Retaining method	Bead is accessible from inside	May be controlled by an interior wedge, tape, or other feature
Drainage	Depends on the complete frame design	Depends on the complete frame design
Maintenance	Indoor access may simplify servicing	Exterior access may complicate servicing
Security assessment	Position limits direct access from outside	Complete locking arrangement must be identified

Neither location guarantees better drainage, weather resistance, security, durability, or energy performance. Those properties belong to the window as a complete system.

How the bead works with gaskets, packers, and the frame

A useful way to understand a beaded window is to separate the load path from the seal path.

Packers or setting blocks position the glass within the frame and help maintain its intended alignment and clearances. The frame rebate limits where the glass can sit. Together, the rebate depth, seals, and bead profile constrain the glass or insulated-unit thickness that the frame can accommodate.

The bead closes or retains the assembly from its designated side. Depending on the system, it may maintain pressure against a gasket or provide mechanical retention through hooks, clips, screws, or a proprietary channel.

Gaskets, tapes, and sealants perform different functions. According to the particular window design, they may:

• Cushion contact between the glass and frame
• Fill controlled spaces
• Establish compression
• Contribute to air and water sealing
• Bed or bond the glass
• Protect the edge of the glazing unit
• Help maintain the glass in its intended position

A timber assembly, for example, can combine an internal bead with glazing tape, glass packers, a perimeter silicone seal, and a ventilation channel. Those components work as a system rather than transferring every retaining and sealing function to the timber strip. Patchett Joinery illustrates this combination in its proprietary internally beaded timber assembly.

In some externally beaded systems, an internal wedge gasket completes the compression and locking sequence. Conceptually, the exterior bead engages with the frame, after which the interior wedge establishes the intended pressure across the glass-and-gasket assembly. The exterior bead cannot then be released simply by reversing its installation from outside.

This interdependence is why glass thickness should not be changed without checking the specific frame documentation. A different thickness can alter the space available for the bead and gasket, but the exact consequences depend on the proprietary design. Before changing the glazing specification, confirm:

• Rebate depth and usable glazing space
• Bead cross-section
• Gasket type and position
• Setting-block arrangement
• Permitted glass or insulated-unit thickness
• Manufacturer or frame-series documentation

There is no universal clearance or gasket-compression figure for all windows.

The same system view applies when investigating defects. A draft or leak noticed beside a bead does not identify the bead as the cause. The surrounding gasket, sealant, glass position, frame condition, joints, and drainage arrangement may also need to be considered.

How to identify a compatible replacement

The central rule is straightforward: match the complete profile and glazing system, not merely the exposed face.

Begin by documenting the window before searching catalogs. Record what can be established without dismantling an uncertain retaining system:

• Frame material: timber, aluminium, vinyl, uPVC, or composite
• Bead location: internal or external
• Fixing method: snap-in, clip-in, screw-fixed, pinned, taped, wedge-assisted, or unknown
• Window manufacturer and series, if known
• Codes, stamps, labels, or marks on the frame or spacer bar
• Glass or insulated-unit thickness, if documented reliably
• Gasket, tape, or sealant arrangement
• Bead material
• Exposed face style
• Color, grain, coating, or finish
• Installed orientation
• Corner treatment
• Required finished lengths and total quantity

If an intact piece has already been removed under the correct system-specific procedure, preserve it. A clean end section is often the best identification aid because it shows the concealed legs, hooks, returns, and engagement surfaces. Do not damage the only serviceable bead merely to create a sample.

Useful photographs include:

1. The bead in its installed position
2. The complete sash or window for context
3. Corners and joints
4. The frame channel, if already exposed
5. An end-on view of a loose sample
6. Frame labels or other markings

Include a dependable scale in profile photographs where practical. Photograph the section square-on and from more than one angle so that a hook or return is not hidden by perspective.

Record observable dimensions consistently, such as overall width and depth, visible-face width, leg length, hook position, and changes in section. Suppliers may use different reference points, so compare your measurements with the labeled drawing for the candidate product rather than assuming one universal measurement convention.

Appearance alone is unreliable. Two white, square-faced beads may look identical once fitted but have different engagement legs, depths, hooks, or gasket seats. One may fit correctly while another sits proud, fails to engage, or interferes with the gasket.

A manufacturer or series name in a product title is useful identification evidence, but it does not guarantee compatibility.

Where the frame maker is known, look for original drawings, parts lists, installation literature, or an authorized replacement-parts route. Where it is unknown, a specialist parts supplier may be able to compare photographs, measurements, and an end-profile sample.

Before ordering a large quantity, seek one or more of the following where available:

• A dimensioned profile drawing
• An explicit frame-series compatibility statement
• A physical sample
• Supplier comparison with the original section
• Written identification based on photographs and measurements
• A small test order

A candidate should be checked in the correct orientation and against the specified frame, gasket, and glass configuration. Entering the opening does not by itself prove that the profile is compatible.

Troubleshooting loose, cracked, bowed, or leaking beads

A visible bead defect is a symptom, not necessarily a complete diagnosis. The observations below identify possibilities rather than providing a remote determination of glass condition or repair scope.

Loose or incompletely seated bead. Possible explanations include incomplete engagement, a worn fixing, profile distortion, a damaged channel, a displaced gasket, frame movement, or an incompatible glazing configuration. Pressing the bead toward the frame may conceal the gap without establishing why it released.

Rattle. Movement or noise can be associated with incomplete retention or reduced compression, but the bead, gasket, glass, or another frame component may be involved. Sound alone cannot establish the condition of the glazing.

Visible gap. A gap may be associated with an incorrect profile, poor seating, distortion, damaged engagement features, or an obstruction in the retaining channel. Comparison with the other sides may help document whether the condition is isolated or repeated.

Crack or missing section. Because the bead forms part of the retaining assembly, cracking or material loss warrants inspection. Its significance depends on the window design, the extent of the damage, and the condition of the surrounding components.

Bowing or warping. A bowed bead may be distorted, incorrectly cut, unsuitable for the frame, incompletely engaged, or affected by the surrounding gasket or glazing arrangement. The cause cannot be confirmed from the visible profile alone.

Draft. Air movement near the glass edge may involve the bead area, but it can also originate at a gasket, sealant joint, sash seal, frame joint, or installation perimeter.

Water intrusion. Assessment may need to include the bead, gaskets, sealants, glass position, frame joints, drainage provisions, and installation perimeter. Replacing the most visible component does not establish that the water path has been corrected.

Manufacturer guidance for reinstalling loose beads exists for particular window systems, which shows that reseating can be an approved remedy in a defined application. It should not be generalized to unrelated materials or profiles. Milgard’s loose-bead guide is specifically presented for an applicable vinyl glazing-bead arrangement.

Bead-only replacement may be viable when a system-specific assessment confirms that the following remain serviceable:

• Glass or insulated glass unit
• Gaskets, tapes, and seals
• Packers or setting blocks
• Sash or frame
• Retaining channel
• Mechanical fixings
• Drainage arrangement

Broader work may be required where the glass is broken, an insulated unit has failed, gaskets or sealants have deteriorated, packers are displaced, the frame or channel is damaged, or drainage is defective. Repeated loosening also indicates that the visible bead may not be the only component requiring attention.

There is no evidence-supported universal reseating or removal procedure for all glazing beads. Identify the window system and use its current instructions before disturbing the retaining assembly.

Replacement principles and when to call a professional

Replacement difficulty varies substantially among snap-in vinyl profiles, aluminium clips, internal wedge gaskets, security tapes, screw-fixed beads, concealed systems, and traditional timber beads. Even two products described as “snap-in” can have different engagement geometry and installation requirements.

A system-neutral process can therefore go only so far:

1. Identify the frame and retaining system.
2. Confirm the exact replacement profile.
3. Obtain current instructions for that frame and glazing configuration.
4. Establish whether the surrounding glass, gaskets, frame, packers, seals, and drainage require assessment.
5. Determine whether access and glass handling fall within the approved servicing method.
6. Follow the documented removal and installation sequence.
7. Check the finished installation against the manufacturer’s seating and operating requirements.

This is not a universal installation sequence. It is a decision framework for establishing which system-specific procedure is needed.

The release order can matter. In some externally beaded systems, an interior wedge gasket controls the exterior bead. In others, security tape forms part of the retaining arrangement. Without documentation for the particular window, this article cannot determine which component should be released first or what tools, access equipment, or handling controls are appropriate.

Use the following checklist to decide whether the work has been defined well enough to proceed:

Question	Work may be considered only when…	Obtain system-specific professional assessment when…
Is the system known?	The frame, bead, and fixing method are positively identified	The profile or release sequence remains uncertain
Is the glass condition known?	No glass or insulated-unit defect is present	The glass is broken, cracked, loose, or has failed
Is the approved procedure available?	Current instructions cover the exact system	Only generic videos or unrelated instructions are available
Is access addressed?	The documented servicing method covers the location	Exterior or elevated access has not been properly planned
Is glass handling addressed?	Pane size and handling are covered by the approved method	The pane is large, heavy, awkward, or otherwise outside that method
Is the frame serviceable?	The channel, frame, seals, and related parts have been confirmed suitable	Distortion, channel damage, or recurring release is present
Is the defect isolated?	The problem has been confirmed as bead-specific	Leaks, drafts, rattling, or loosening continue or recur

Broken glass, large or heavy panes, insulated glass units, elevated windows, exterior-access work, distorted frames, uncertain retaining systems, and recurring leaks or release all introduce questions this general guide cannot resolve. In those circumstances, obtain guidance from the window manufacturer or a qualified glazing professional.

This article does not establish an access method for upper-story exterior glazing and does not endorse a household ladder as a default solution. Access and glass-control requirements must be determined for the actual site, pane, and window system by competent personnel.

Buying glazing bead without ordering the wrong profile

Descriptions such as “white vinyl glazing bead” or “six-foot snap-in bead” are not specific enough to establish compatibility. Before purchasing, verify:

• Exact cross-sectional profile
• Dimensioned drawing and measurement references
• Compatible frame manufacturer and series
• Material
• Color, coating, grain, or finish
• Internal or external application
• Fixing or engagement method
• Glass and gasket requirements
• Nominal supplied length
• Required finished lengths and total quantity
• Whether matching gaskets, clips, or fixings are separate
• Sample availability
• Return policy for cut and uncut material
• Packaging and shipping restrictions
• Minimum order quantity
• Current availability and lead time

Retail catalogs commonly contain 3-foot and 6-foot sections, but these are commercial examples rather than universal standard lengths. Distinct item numbers can apply to products sharing the same broad descriptions, reinforcing that neither “vinyl glazing bead” nor “snap-in bead” defines one cross-section.

Possible sourcing channels include proprietary window-system suppliers, specialist parts distributors, retrofit-profile producers, installer stock, and direct suppliers. Availability is generally easier to investigate when the original frame manufacturer and series are known.

As a bounded commercial example, CRL lists item VGB3997W as a white snap-in vinyl glazing bead with a minimum order of 20 each. The page also links bronze and gray variants. Those finish options show that color is an ordering variable, but the listing does not provide enough information to establish dimensional compatibility. These terms should be verified at the time of purchase because commercial details can change. See the CRL VGB3997W product listing for the current description, variants, and order terms.

Do not base a bulk order on color, nominal length, a photograph, or a brand association. Likewise, do not modify a candidate before compatibility has been established; altering its cross-section can change the engagement surface that distinguishes it from another profile.

A dependable purchasing sequence is:

1. Document the existing window system.
2. Compare the complete end profile.
3. Confirm the frame, gasket, and glazing configuration.
4. Obtain a drawing, sample, or informed supplier comparison.
5. Check the candidate under the approved sample or trial process.
6. Order the final quantity only after the match is established.

The essential replacement principle

Glazing-bead replacement is a compatibility and system-assessment task, not a search for any strip that looks similar. Identify the bead’s location and fixing method, document its complete cross-section, and confirm its relationship to the frame, glass, gaskets, and rebate.

When the symptom extends beyond cosmetic damage—such as leaks, drafts, rattling, glass movement, or repeated release—the surrounding glazing and drainage assembly also requires consideration.

If the retaining system remains uncertain, use manufacturer-specific guidance or obtain an assessment from a qualified glazing professional rather than applying a procedure intended for another window.

Frequently asked questions

Is snap-in glazing the same as glazing bead?

“Snap-in glazing” is commonly used as another name for a snap-in type of window glazing bead. It identifies a fixing category, not one universal product. Individual snap-in beads differ in cross-section, dimensions, material, frame association, and engagement geometry.

Can a glazing bead be replaced without replacing the whole window?

Often, yes. A removable bead may allow an individual pane or insulated glass unit to be serviced without replacing the complete sash or window.

Bead-only replacement is suitable only when the applicable system assessment confirms that the glass, gaskets, retaining channel, packers, seals, frame, and drainage arrangement remain serviceable. Broken glass, a failed insulated unit, frame distortion, or channel damage can extend the repair beyond the bead.

Are externally beaded windows automatically less secure?

No. An exterior bead may be controlled by an interior wedge gasket, security tape, or another system-specific feature. Older and newer externally beaded windows can use different arrangements, so age and bead position alone do not establish vulnerability.

Security should be assessed from the complete window design, glazing method, fixings, condition, and applicable system testing.

Can a loose glazing bead simply be pushed back into place?

Sometimes reseating is an approved remedy for a known window system, but it is not a universal solution. A loose bead may be associated with incomplete engagement, distortion, a displaced gasket, a worn fixing, a damaged channel, frame movement, or an incompatible glazing configuration.

Use the instructions for the identified window. If the bead will not remain seated, repeatedly releases, or is accompanied by glass movement, cracking, leaks, or frame distortion, the wider assembly needs assessment.

What information should I send to a supplier to identify an unknown bead?

Send clear photographs of the complete window, installed bead, corners, bead-to-frame joint, and end-on profile of any safely available sample. Include a scale in profile photographs and provide:

• Frame material
• Internal or external bead location
• Known manufacturer or series
• Observable profile dimensions
• Documented glass or insulated-unit thickness
• Gasket, tape, or sealant arrangement
• Fixing method
• Material and finish
• Installed orientation
• Required lengths and quantity
• Labels, codes, or frame markings

Ask the supplier to compare the concealed engagement geometry, not only the exposed face. Where possible, request a dimensioned drawing, sample, or explicit compatibility confirmation before ordering or cutting the full quantity.
