How to Give Clay-Brick Veneer Room to Move

Theo Marchetti Aug 11, 2026 · 21 min read

A brick expansion joint is not simply a caulked line placed every few feet. It is a planned break through the clay-brick wythe that lets adjacent sections of masonry move without forcing all of that movement into corners, openings, supports, and other restrained locations.

Good layouts are developed in two passes:

Place joints at stress points and transitions, including corners, openings, offsets, support changes, shelf angles, and material changes.
Review the remaining uninterrupted veneer and add joints where necessary to limit the length of each run.

The familiar 20- and 25-foot dimensions are useful during preliminary planning, but they are not universal answers. BIA recommends no more than about 20 feet between veneer expansion joints where openings occur and up to about 25 feet where the brickwork has no openings (BIA brick FAQs). Final locations and widths depend on facade geometry, brick properties, climate and exposure, support conditions, anticipated movement, and the capacity of the selected backing and sealant system.

What a brick expansion joint does

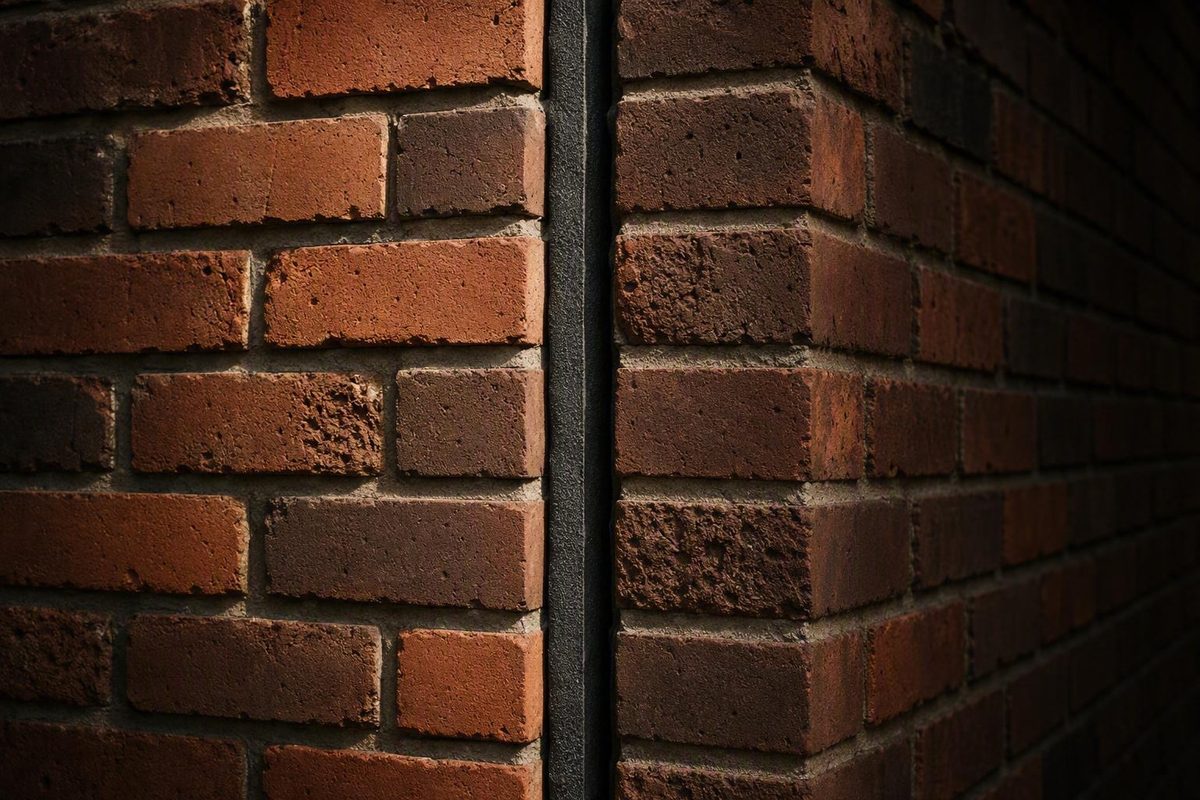

A brick expansion joint is a deliberate, continuous separation through the clay-brick wythe. Instead of bonding a long elevation into one rigid panel, the joint divides it into shorter sections that can move relative to one another.

Clay brick experiences net expansion, including long-term moisture-related expansion. Temperature changes, solar heating, structural deformation, and differential movement among the brick, backing, supports, and other wall components can add to the movement demand. Industry guidance therefore treats clay-brick movement joints as expansion joints and calls for them to remain free of noncompressible obstructions.

The purpose is to reduce restraint. If a long run of brick is restrained while it expands, stress builds at weak or geometrically discontinuous locations. A properly located compressible joint gives some of that movement a controlled place to occur. It can reduce the likelihood of movement-related cracking, but it cannot guarantee a crack-free wall or compensate for unrelated structural, support, corrosion, or moisture defects.

This distinction matters because a joint must do more than look like a separation at the face. It must remain continuous through the brick wythe and free of mortar droppings, brick fragments, rigid shims, joint reinforcement, or other materials that connect its two sides. A sealant line over a blocked gap is not a functioning movement joint.

This guide concerns conventional fired clay-brick walls and veneer. Its preliminary spacing guidance should not be transferred unchanged to:

Concrete masonry units
Concrete brick
Calcium-silicate masonry
Natural or manufactured stone
Cast stone
Refractory masonry

Those materials can have different movement characteristics, support requirements, and joint terminology.

For clay-brick veneer, use the two-pass method from the outset. First, divide the veneer where geometry, support, or material changes are likely to concentrate stress. Then examine the resulting panels and limit their uninterrupted lengths. This avoids the common mistake of drawing joints on a fixed grid while overlooking the places where movement actually needs to be released.

Final design remains project-specific. Brick properties, wall orientation, solar exposure, climate, panel length and height, openings, support locations, restraint, and sealant-system capacity all affect the required layout. Each building and facade should be evaluated individually rather than designed from a spacing rule alone.

Expansion joint, control joint, or building joint?

Construction documents use movement-joint terminology inconsistently. The intended function and continuity of the joint are more important than the label by itself.

Joint	Typical application	Material behavior addressed	Usual continuity
Clay-brick expansion joint	Clay-brick wall or veneer	Net brick expansion, temperature effects, and differential movement	Continuous through the brick wythe; it may stop at the back of the veneer
CMU control joint	Concrete masonry wall	Shrinkage-related cracking in concrete masonry	Creates a planned plane within the CMU wall
Structural building expansion joint	Whole-building separation	Larger structural, thermal, seismic, or differential movement	Continues through multiple building elements and divides the structure into separate sections

In clay-brick masonry, the conventional term is expansion joint because the masonry undergoes net overall expansion. In concrete masonry, the conventional term is control joint because CMU generally experiences net shrinkage and the joint helps control where shrinkage cracking occurs (BIA brick FAQs).

A CMU control joint is therefore not merely a saw cut made after settlement cracking appears. It is commonly a planned part of concrete-masonry design. Dimensions associated with saw-cut concrete slabs or other concrete work should not be applied to a brick-veneer joint.

A veneer expansion joint is also not automatically a structural building expansion joint. A vertical gap can pass continuously through the brick wythe while the backing, framing, floors, and foundation remain continuous. Its purpose is to segment the veneer, not necessarily to divide the building.

By contrast, a structural building expansion joint separates larger portions of a structure. It may interrupt foundations, walls, floors, decks, curtain walls, and roofs. Purpose-designed systems may then be needed to restore functions such as weather resistance, fire separation, or traffic support across the opening.

Project terminology can still vary. Some general construction references reserve “expansion joint” for a full structural separation, while masonry references use “veneer expansion joint” for a gap limited to clay brick. Before interpreting a note, determine:

Which material or wythe is being separated
What movement the joint is intended to accommodate
Whether the backing and structure continue behind it
Which components must stop, cross, or be specially detailed
How enclosure functions are maintained at the joint

A label without an assembly detail is not enough.

Preliminary spacing: why 20 and 25 feet are starting points

For early layout of conventional clay-brick veneer, the direct preliminary answer is:

About 25 feet maximum between vertical expansion joints where the brickwork has no openings
About 20 feet maximum where windows, doors, or other openings occur

The Brick Industry Association presents these as recommended veneer-joint spacings: no more than 20 feet where openings are present and up to 25 feet where there are no openings.

These dimensions are rules of thumb for preliminary planning, not universal code mandates. Meeting them does not prove that the joint layout is adequate, and exceeding them is not the only reason a joint may be necessary.

Openings matter because they interrupt the masonry panel and change how forces travel through it. Window and door assemblies introduce:

Jambs and narrow brick piers
Lintels or other support elements
Changes in local restraint
Re-entrant corners
Sills and flashing transitions
Differences between foundation-supported and lintel-supported brickwork
Alignment constraints that may make one joint location more effective than another

A wall with several openings may therefore need both closer spacing and more deliberate placement. A joint positioned only to satisfy a nominal maximum could miss the jamb, support transition, or narrow panel where stress is concentrated.

Example: a 60-foot elevation without openings

For preliminary planning, a hypothetical 60-foot uninterrupted clay-brick elevation should not be treated as one panel. Begin by dividing it into runs no longer than approximately 25 feet. That may suggest two intermediate joints and three panels, subject to adjustment for the building’s actual conditions (IMI brick movement-control guidance).

Do not finalize those joints at mathematically equal thirds without reviewing the building. Move the tentative lines as needed to coordinate with:

Inside or outside corners
Setbacks and offsets
Changes in wall height
Changes in foundation or shelf-angle support
Adjacent materials
Returns and intersections
Architectural modules and brick dimensions

The result may be three unequal panels, each within the preliminary limit, rather than three equal panels that ignore the facade’s actual stress points.

Example: an elevation with several windows

For an elevation containing repeated windows, begin with an approximate maximum run of 20 feet and then investigate whether one or more joints can align with window jambs. Treat that dimension as preliminary rather than as an engineered result (masonry movement-joint guidance).

Alignment may produce a visually orderly elevation and release movement at an opening, but it must be coordinated with lintel bearing, flashing, sealant space, and the dimensions of adjacent brick panels.

Conditions that can justify closer spacing or project-specific analysis include:

Irregular or highly articulated geometry
Numerous or closely spaced openings
Long, low wall panels
Changes in wall height or thickness
Dark-colored brick
Strong solar exposure
Differently exposed elevations
Large temperature ranges
Severe or unusual climate exposure
Different backing or bearing conditions
Changes between foundation-, lintel-, and shelf-angle-supported veneer

Solar heating can make elevations behave differently, so identical spacing on every side of a building is not necessarily appropriate. Temperature, moisture, sun exposure, wall configuration, and support conditions all affect movement-joint placement (Masonry Advisory Council movement-joint article).

The governing planning principle is simple: a maximum run length never overrides the need to separate stress points and support transitions. Place those joints first; use the preliminary spacing guidance to check what remains.

Where vertical joints belong on an elevation

A vertical-joint layout should be developed as an elevation review, not generated from one spacing number. Work through the facade feature by feature.

1. Review inside and outside corners

Corners connect intersecting wall runs and can restrain movement from two directions. Inside corners are common starting locations for vertical joints. Outside corners may require joints on one or both adjoining elevations, or a joint located near rather than directly at the corner.

The exact offset is project-specific. It depends on corner bonding, panel lengths, appearance, support, brick dimensions, returns, and adjacent openings. Published example offsets should not be converted into a universal dimension.

At an outside corner, ask:

Will both adjoining elevations expand toward the corner?
Can one side move without loading the return?
Is a joint needed on both elevations?
Would placing it directly at the corner undermine the desired bond or appearance?
Can a nearby joint create a short, stable return without producing a fragile panel?

2. Examine window and door jambs

Jambs are natural candidates for joint lines because openings interrupt the masonry and create re-entrant corners. A joint can sometimes align with one side of a window or door and continue vertically through aligned openings.

That apparent simplicity can conceal several coordination problems. Confirm:

Lintel bearing and support
The width of brick beside the opening
Alignment among stacked openings
Sill and end-dam flashing
Available space for backer rod and sealant
Whether the joint continues above and below the opening
The visual relationship between the sealant joint and adjacent mortar joints

Where openings are supported differently from the brick below, a jamb joint may also separate veneer with different bearing conditions.

3. Mark offsets, setbacks, and intersections

Changes in plan interrupt the path of movement. Review:

Wall offsets
Setbacks
Projecting bays
Recesses
Intersections and returns
Buttresses and pilasters
Changes in elevation
Abrupt changes in wall height or thickness

These features can create restraint or concentrate movement at narrow sections. A regular grid that passes near—but not at—the transition may provide little benefit where it is most needed.

4. Identify material and assembly transitions

Pay particular attention to boundaries between cladding materials or wall assemblies that move differently. Examples include brick adjoining metal panels, precast elements, concrete, stone, or a different brick assembly.

The detail must clarify whether the materials are structurally separated, whether either side bears on the other, and how the weather barrier, flashing, and sealant system continue behind the visible joint.

5. Map support zones

Do not review only the appearance of the elevation. Overlay its support conditions.

A section of veneer supported on a foundation can move differently from brick supported by a fixed lintel or shelf angle. Where adjacent veneer sections have different bearing points, a vertical movement joint may be needed between them. Different bearing conditions, corners, openings, and material interfaces are all relevant to joint layout (IMI discussion of masonry movement-joint failures).

This support-zone map is especially valuable where:

A fixed lintel supports brick above an opening
Brick beside the opening continues to the foundation
A shelf angle begins or terminates partway across an elevation
One facade area is supported by a different structural frame
Additions or changes in construction create discontinuous backing

6. Check the remaining runs

After joints have been placed at corners, jambs, geometry changes, material transitions, and support changes, measure every remaining uninterrupted run. Compare those dimensions with the applicable preliminary guidance for walls with and without openings.

If a run remains too long, add another joint at a location that works with the brick module, architecture, backing, and enclosure. Do not simply divide the dimension numerically without checking what lies behind the face.

Project elevations should show likely joint lines at:

Inside or outside corners
Window or door jambs
Setbacks or offsets
Cladding transitions
Support changes
Long otherwise uninterrupted runs

Each line should key to a corresponding detail. Without that relationship, the drawing identifies where a joint appears but not how it functions.

Horizontal joints at shelf angles and support transitions

Vertical joints divide long horizontal runs. Horizontal expansion joints address vertical movement and changes in veneer support.

They are commonly located immediately below shelf angles. Brickwork above the shelf angle is supported at that level, while the veneer below may expand upward or move differently with its own support and backing. A compressible horizontal space below the angle prevents the lower brickwork from bearing hard against the support (IMI brick movement-control guidance).

Horizontal joints may also be appropriate where there is a change in:

Veneer support
Backing construction
Story-level support conditions
Adjacent veneer material
Structural framing or anticipated deflection

A shelf-angle joint is not merely a visible bead of sealant. It is a coordinated support, movement, flashing, and drainage detail.

The required space must remain compressible. Mortar, rigid shims, brick fragments, or other noncompressible materials must not fill or bridge it. If mortar bears between the top of the lower veneer and the steel angle, the nominal joint cannot compress even if the exterior sealant looks correct.

Flashing must also be coordinated with the movement space. Backing and sealant must be positioned so the exterior joint remains weather-resistant while the drainage path remains functional.

Lipped brick can conceal part of the horizontal sealant line and reduce its apparent height. It should be evaluated as one detailing option rather than treated as universally preferable.

Do not use a universal shelf-angle gap. The necessary dimension depends on anticipated differential movement, vertical panel height, structural behavior, construction tolerances, and the capacity of the selected joint system.

Use this shelf-angle review checklist:

Location shown: Every shelf angle and corresponding horizontal joint appears on the drawings.
Gap specified: The design gives a project-appropriate dimension and tolerance.
Space preserved: Mortar droppings, rigid shims, and debris are kept out.
Flashing maintained: Flashing, end conditions, and drainage remain continuous.
Backing coordinated: Backer material fits without unintended overcompression or displacement.
Sealant compatible: Sealant, primers, substrates, and backing follow the selected system’s instructions.
Movement unrestrained: No component unintentionally locks the lower veneer to the angle.
Work inspected: The joint is checked before backing, sealant, or adjacent finishes conceal its interior.

Width, backing, and sealant: the anatomy of a working joint

Widths of 3/8 inch to 1/2 inch are commonly cited examples for brick expansion joints, but they are not default specifications for every wall (Masonry Advisory Council movement-joint article). A stock filler dimension does not prove that the same joint width is sufficient for a particular facade.

IMI gives a qualified professional example of a 1/2-inch joint where expansive clay brick occurs on both sides, allowing the joint to compress toward the width of a typical mortar joint. That recommendation is tied to the described condition and should not be generalized to every assembly (IMI movement-joint detailing discussion).

Actual width must account for:

Anticipated movement of the brick panels
Length of veneer contributing movement to the joint
Thermal exposure and moisture expansion
Movement of the backing and support structure
Construction tolerances
The sealant system’s rated extension and compression
Minimum and maximum permitted sealant dimensions
Serviceability and replacement access

Width alone cannot size the joint. The gap and all its components must accommodate expected movement without overstressing the sealant, crushing the backing beyond its usable range, or allowing the brick faces to bear against one another.

A conventional functional joint has four essential characteristics:

A continuous, unobstructed gap. The separation passes through the clay-brick wythe.
Compressible filler or backing. The material supports the sealant and can deform as the joint closes.
A bond-breaking surface. The back of the sealant is prevented from bonding to a third surface.
Compatible elastomeric sealant. The sealant adheres to the opposing joint faces and accommodates the specified movement.

Backer rod performs several functions. It controls sealant depth, helps shape the bead, provides a surface against which the sealant can be tooled, and limits adhesion to the two opposing sides. Without an effective bond breaker, sealant can adhere at the back as well as the sides.

Some masonry guidance suggests using circular backer rod approximately 25 percent larger than the opening and a sealant depth near half the joint width, with a commonly cited minimum depth of 1/4 inch. These are installation starting points only; the selected backer-rod and sealant manufacturers’ limits, project specification, and calculated movement demand take precedence (masonry joint-construction guidance).

In section, a properly tooled sealant bead is often described as hourglass-like. It is thinner at the center, where deformation is concentrated, and bonded to the two joint faces. The sealant should not be bonded to the backer rod or another surface behind the bead.

The joint’s interior is as important as its visible face. Prohibited bridges include:

Mortar fins and droppings
Brick chips and debris
Wood or rigid plastic packing
Noncompressible shims
Hardened filler
Joint reinforcement continuing across the gap
Misplaced accessories tying both brick panels together

Joint reinforcement should terminate at the expansion joint rather than pass through it.

Foam, rubber, and neoprene are categories used for compressible backing or filler. Silicone and polyurethane are common elastomeric sealant categories. None is universally correct. Selection should consider:

Rated movement capacity
Compatibility with brick, backing, flashing, and adjacent sealants
Primer requirements
Adhesion to the actual substrates
Staining or plasticizer-migration risk
UV and weather exposure
Installation temperature and moisture limits
Tooling and curing requirements
Future access and replacement

Project drawings should include an annotated cross-section showing the clear gap, backing, bond-breaking surface, and sealant profile. Companion details can contrast that functional arrangement with common failures such as mortar blockage, reinforcement crossing the gap, inadequate backing, and three-sided sealant adhesion.

From facade study to construction drawings

The building designer should establish the required movement-joint layout and document it. IMI reads the cited provisions of TMS 402/602 as assigning the building designer responsibility for accommodating differential veneer movement and indicating movement-joint types and locations on project drawings.

A generic note such as “provide expansion joints as required” is inadequate. It transfers unresolved design decisions to installers who may not have the information or authority to evaluate brick properties, structural supports, enclosure continuity, and whole-facade movement.

Construction documents should show:

Dimensioned vertical-joint locations
Horizontal joints and shelf-angle locations
Joint types and widths
Limits and terminations
Transitions at openings and corners
Relationship to brick coursing
Support and bearing conditions
Backing and sealant geometry
Reinforcement discontinuities
Flashing and drainage continuity
Interfaces with other cladding and enclosure systems

A practical design workflow is:

Confirm the masonry type. Establish that the guidance applies to fired clay brick rather than CMU, concrete brick, stone, or another material.
Map the facade. Mark corners, openings, returns, offsets, wall-height changes, thickness changes, and long runs.
Map materials and supports. Identify backing changes, foundation support, lintels, shelf angles, and interfaces with other cladding.
Place stress-point joints. Locate vertical and horizontal joints at transitions most likely to restrain or concentrate movement.
Check remaining run lengths. Apply the qualified preliminary spacing guidance after the stress-point layout has been established.
Determine movement demand and width. Evaluate brick expansion, thermal effects, panel length, support movement, restraint, tolerances, and sealant capacity.
Coordinate the enclosure. Resolve flashing, drainage, air and water barriers, insulation, terminations, and any applicable fire or acoustic requirements.
Specify the joint system. Define backing, bond breaker, sealant performance, primers, preparation, tooling, and compatibility requirements.
Review constructability. Confirm that masons and sealant installers can build, inspect, clean, and eventually maintain the detail.
Inspect the work. Verify both the concealed movement space and exposed sealant geometry.

Design and workmanship responsibilities are related but distinct. The designer establishes required locations, dimensions, details, and performance. Construction must preserve the specified opening; keep it clear of mortar, reinforcement, and rigid obstructions; install flashing correctly; and execute the backing and sealant geometry shown.

A pre-sealant hold point is particularly valuable. Before backer rod and sealant hide the gap, inspect for:

Mortar droppings
Brick fragments
Rigid fillers or shims
Joint reinforcement crossing the gap
Incorrect or inconsistent width
Damaged brick edges
Contaminated joint faces
Missing or damaged flashing
Interfaces that unintentionally bridge the joint

Photographic documentation and sign-off at this stage can be more informative than inspecting only the finished sealant bead.

For final design, verify the current editions and project applicability of TMS 402/602, BIA Technical Notes 18 and 18A, locally adopted codes, brick-manufacturer movement data, and the selected sealant system’s instructions. The dimensions discussed here should not be represented as current universal code requirements without confirming the governing editions and local adoption.

Existing cracks and failed joints require diagnosis first

Movement-joint design for new construction and repair of an existing cracked wall are different tasks.

A crack does not, by itself, prove that an expansion joint is missing. Similar distress can result from:

Temperature and moisture movement
Restrained brick expansion
Structural deflection
Foundation settlement
Differential support movement
Lintel displacement or corrosion
Inadequate bearing
Water-related deterioration
Movement between dissimilar materials

Before adding or reopening a joint, document the crack pattern and inspect the surrounding assembly. Conditions warranting closer assessment include:

Cracks concentrated near corners or opening jambs
Stair-step or recurring cracks
Displacement across the crack
Bulging or outward movement
Existing joints filled with mortar
Reinforcement crossing a nominal joint
Hardened, extruded, torn, or missing sealant
Adhesive failure at the joint face
Rust staining or signs of corroded steel
Lintel rotation, deflection, or masonry crushing
Evidence of foundation or structural movement

Cutting a new joint is not an automatic repair.

Similarly, reopening a mortar-blocked joint requires more than removing material from the visible face. The full intended movement space must be restored without damaging nearby brick or concealed components. If rigid material remains deeper in the wythe, new sealant at the surface will not restore the joint’s movement capacity.

At a principles level, the work should include:

Removing failed material without damaging adjacent brick or joint faces
Cleaning and preparing the substrates
Restoring the required clear, compressible movement space
Correcting accessible obstructions where that can be done safely
Installing compatible backing at the specified depth
Applying and tooling the sealant according to the selected system
Confirming adhesion and continuity after curing

Backer rod and a bond-breaking surface allow the sealant to develop the intended profile and deform between two bonded faces rather than being restrained on three sides (Brick Doctor’s joint-anatomy discussion).

Professional assessment is prudent when cracking is unexplained, recurrent, displaced, associated with corrosion or lintel movement, or potentially connected to foundation or structural movement. Joint placement and repair must be determined from the building’s specific design and conditions rather than from the crack’s surface appearance alone (general brick-wall joint guidance).

A concise inspection framework can help separate three broad conditions:

Obstructed joint: The intended gap exists, but mortar, debris, reinforcement, or rigid packing prevents movement.
Sealant-system failure: The gap remains functional, but the sealant has lost adhesion, torn, hardened, weathered, or been installed with unsuitable geometry.
Distress originating elsewhere: Cracking or displacement is driven by a support, lintel, foundation, corrosion, moisture, or structural problem rather than primarily by the joint.

Diagnosis should come before cutting, reopening, or resealing.

Frequently asked questions

How far apart should brick expansion joints be?

For preliminary clay-brick veneer planning, use about 25 feet maximum where there are no openings and about 20 feet where windows, doors, or other openings occur. These are industry recommendations and planning rules of thumb, not universal code mandates.

First place joints at corners, jambs, offsets, material transitions, and support changes. Then check the remaining runs against the preliminary maximums. Irregular geometry, dark brick, strong solar exposure, numerous openings, climate, and differing support conditions may require closer spacing or project-specific analysis.

Is 3/8 inch or 1/2 inch the standard brick expansion-joint width?

Neither dimension is universally standard. Widths from 3/8 inch to 1/2 inch are commonly cited examples, but actual width must accommodate the anticipated movement of adjacent panels without exceeding the capabilities of the backing and sealant system (brick-joint overview).

Panel length, brick movement, exposure, structural movement, construction tolerances, and sealant movement rating all matter. A stock filler width is not a design calculation.

What is the difference between a brick expansion joint and a CMU control joint?

A clay-brick expansion joint accommodates the net expansion and differential movement of clay-brick masonry. It is a continuous, compressible separation through the brick wythe.

A CMU control joint manages cracking associated with the net shrinkage of concrete masonry. Although both are movement joints and can look similar at the surface, they respond to different material behavior and require assembly-specific layouts.

Does a brick expansion joint have to continue through the entire building?

No. A brick-veneer expansion joint can be limited to the brick wythe while the backing and structure remain continuous.

A structural building expansion joint is different: it separates larger portions of the building and continues through multiple building elements. Where a building joint occurs, the veneer and enclosure must be coordinated with it, but not every veneer expansion joint is a building joint.

Can a new expansion joint fix an already cracked brick wall?

Not automatically. Existing cracks can result from restrained brick movement, but they can also be caused by settlement, lintel movement, corrosion, structural deformation, moisture damage, or support failure.

The wall should be diagnosed before a new joint is cut or an existing one is reopened. Concealed flashing, ties, reinforcement, membranes, and bearing conditions may be affected. A new joint cannot be assumed to correct defects originating elsewhere, and the backing, surface preparation, sealant adhesion, and clear movement space all require inspection when an existing joint is repaired (joint repair and sealant principles).

The practical planning rule is: divide the veneer at stress points and support transitions first, then check the remaining runs against the qualified 20- and 25-foot guidance (general spacing overview). A line on an elevation becomes a working joint only when its width is designed for expected movement and its gap remains clear, compressible, correctly sealed, and coordinated with the wall’s support and water-management systems.
